Inversion Drum X630
Inquiry Now
Add To Basket
Basic Information
Structure
Data Sheet

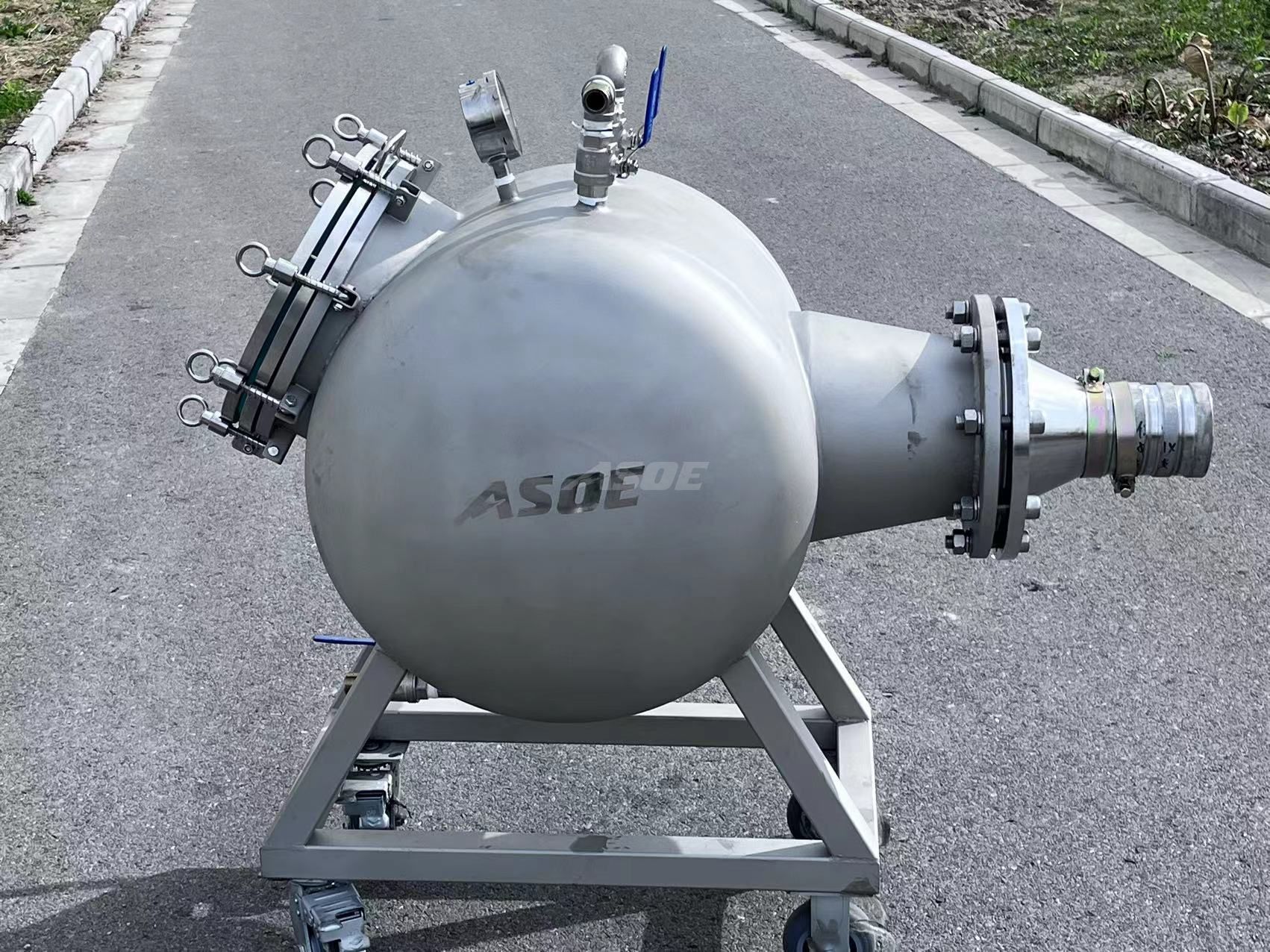

Asoe Inversion Drum X630 is a medium flexible inversion drum in stainless steel 304 with a diameter of 630 mm. X630 inversion drum easily holds 40m (132 ft ) DN200 XbawlinerTM.

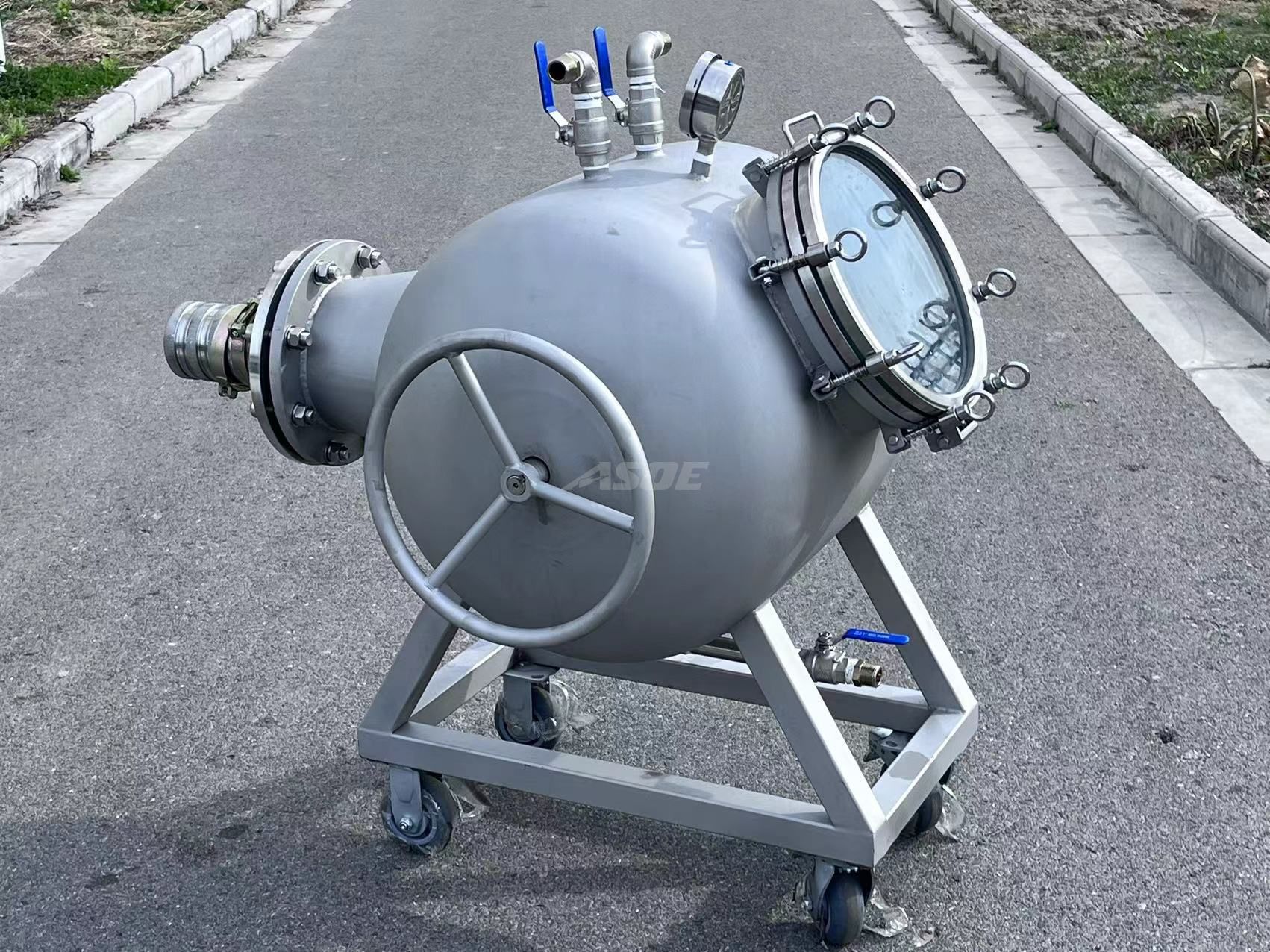

       X630 Inversion drum has a large control wheel for better control during the installation. Made for cold and hot curing, with both steam and hot water as well as UV curing.


Index

Data

Weight

85kg

Outer Dimensions

Width 830mm  Length 1120mm  Height 1100m

Drum Diameter

Φ600mm

Flange Size

DN200

Service Window

Yes

Stand Type

Cart


Materials

SS304

RELEIF VALVE

DN15，2.0 bar

Max Pressure

2.0 bar

Max Temperature

120°C
