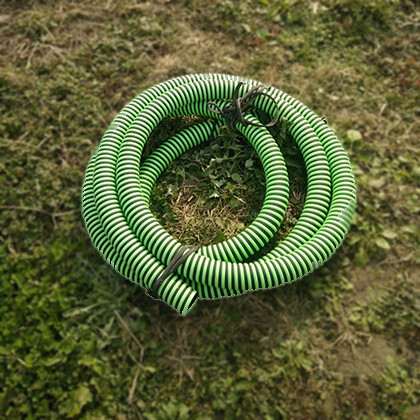

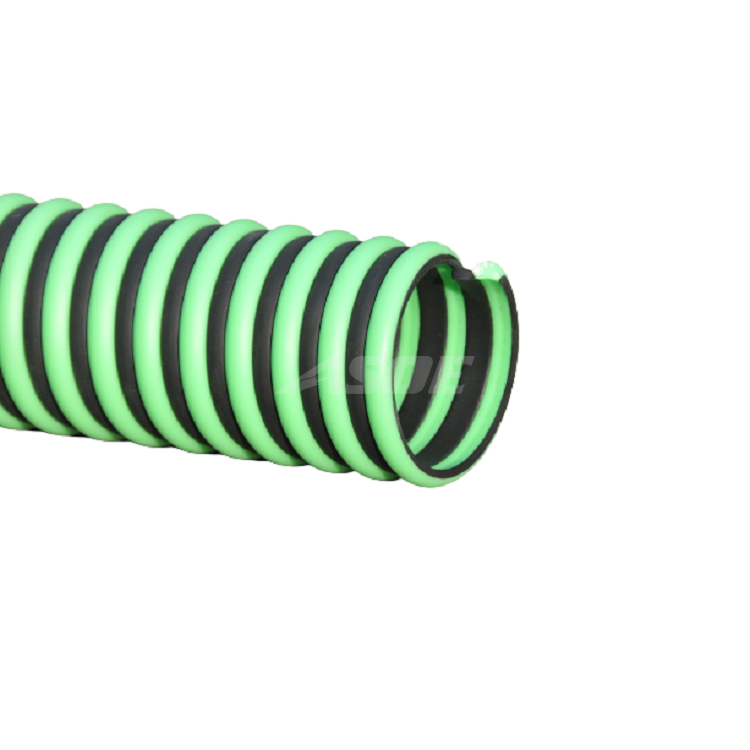

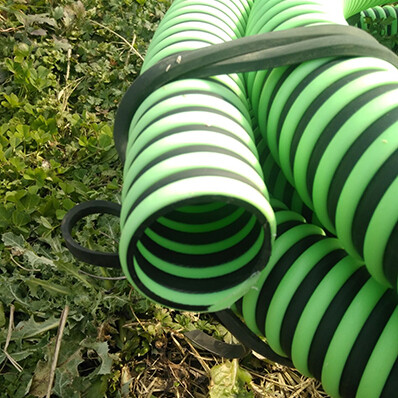

Geneflex™ EPDM/PE Suction Hose
Geneflex™ EPDM/PE Suction Hose is a high-performance hose designed for liquid transfer in agricultural, industrial, and municipal applications. Made from EPDM and PE materials, it offers excellent chemical resistance, abrasion resistance, and weather durability. Its lightweight and flexible design ensures easy handling and installation, making it suitable for various suction and discharge operations.
Inquiry Now
Add To Basket
Basic Information
Structure
Data Sheet

  • Basic Information

  • Size: 1"-6"
    Standard Color: 1758692673829350943041036288.png+1758692673829350943049428992.png （Other colors available）

  • Length: Up to 30m, customized lengths available
    Application:
    · Vacuum Pumps Dewatering
    · Frack Liquid Removal
    · Marine Bilge Discharge
    · Agriculture Liquid Fertilizers
    · Liquid Manure Handling
    · Irrigation

  • Structure

  • · High-grade Rubber Compounds

  • · Rigid Polyethylene Helix

  • Features

  • · Excellent Flexibility

  • · Cold-Resistance Raw Material

  • Data Sheet

  • Code

    Inch

    ID

    OD

    Wall Thickness

    Weight

    Minimum Bend Radius

    Working Pressure at 40℃

    Vacuum Rating at40℃

    mm

    mm

    mm

    kg/m

    m

    MPa

    kPa

    E/P02501

    1

    25.4(+1.5, -0)

    36.5 (+1.5, -0)

    5.5～6.5

    0.46

    0.060

    0.30

    94.81

    E/P04001

    1-1/2

    38.1 (+1.5, -0)

    50.5 (+1.5, -0)

    5.5～6.5

    0.62

    0.080

    0.24

    94.81

    E/P04001

    1-3/4

    44.5 (+1.5, -0)

    54.0 (+1.5, -0)

    4.5～5.5

    0.80

    0.105

    0.24

    94.81

    E/P05001

    2

    50.8 (+1.5, -0)

    62.0 (+1.5, -0)

    5.5～6.5

    0.95

    0.125

    0.24

    94.81

    E/P08001

    3

    75.2 (+1.5, -0)

    86.5 (+1.5, -0)

    6.5～7.5

    1.50

    0.180

    0.21

    88.04

    E/P10001

    4

    100.8 (+1.5, -0)

    116.5 (+1.5, -0)

    8.0～9.0

    2.40

    0.300

    0.17

    88.04

    E/P15001

    6

    151.1 (+1.5, -0)

    168.0 (+1.5, -0)

    8.5～9.5

    4.00

    0.510

    0.14

    81.26
